TA0005 Tantalum Bar, Tantalum Rod (Ta Rod, Ta Bar)

Catalog No.	TA0005
Dimensions	Customized
Material	R05200; R05400
Standard	ASTM B365; ASTM F560
Purity	≥99.9%, or customized

With a high melting point, hardness and low coefficient of thermal expansion, Tantalum excels in demanding applications such as electronics, aerospace, and medical devices. Backed by our commitment to quality, Stanford Advanced Materials (SAM) offers Tantalum Bars and Tantalum Rods with unparalleled purity and reliability.

INQUIRY

Description

Specification

Video

Reviews

Tantalum Bar & Tantalum Rod Description

Tantalum bar and tantalum rod are made of tantalum ingots. Tantalum bars and rods can be used in the chemical industry and oil industries due to their corrosion resistance. SAM is a trusted supplier of tantalum rods & bars and we can provide customized tantalum products. SAM’s tantalum rod is worked cold from ingot to final diameter. Forging, rolling, swaging, and drawing are used singularly or in combination to reach the desired size.
Ta rods and Ta bars are mainly used as high-temperature alloys containing tantalum, tantalum-based heat-resistant, and corrosion-resistant alloy additives.

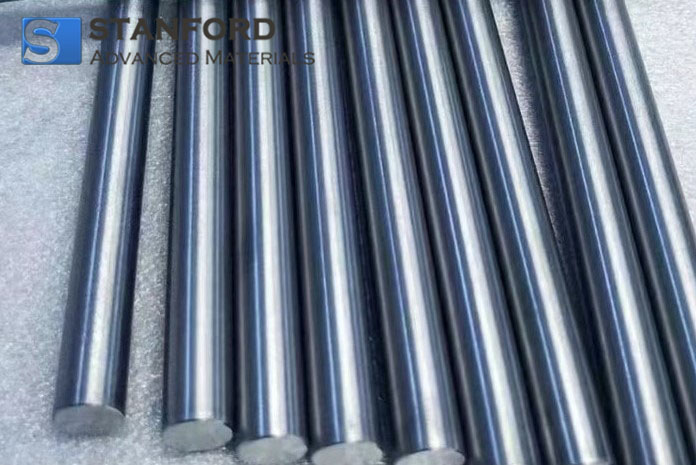

ta rod tantalum bar

Tantalum Bar & Tantalum Rod Specification

Material	Tantalum
Grade	R05200, R05400
Standard	ASTM B365, ASTM F560
Shape	Rod, Bar
Density	≥16.69 g/cm³
Purity	≥99.9%, or customized
Dimensions	Dia.: 3.18 to 63.50 mm (0.125" to 2.5") Or customized

Chemical Composition. W%

Grade	Ta	O	N	H	C
R05200	Bal.	≤0.025	≤0.010	≤0.0015	≤0.020
R05400	Bal.	≤0.035	≤0.010	≤0.0015	≤0.020

Mechanical Properties

Grade

Tensile Strength,

Min, psi (MPa)

Yield Strength,

Min, psi (MPa)

Elongation,

Min, %

R05200/R05400

25, 000 (172)

15, 000 (103)

Rod Tolerance

Diameter	Tolerance
0.125–0.187 in (3.175–4.750 mm)	0.00300 in (±0.076 mm)
0.187–0.375 in (4.750–9.525 mm)	0.00400 in (±0.102 mm)
0.375–0.500 in (9.525–12.70 mm)	0.00500 in (±0.127 mm)
0.500–0.625 in (12.70–15.88 mm)	0.00700 in (±0.178 mm)
0.625–0.750 in (15.88–19.05 mm)	0.00800 in (±0.203 mm)
0.750–1.000 in (19.05–25.40 mm)	0.010 in (±0.254 mm)
1.000–1.500 in (25.40–38.10 mm)	0.015 in (±0.381 mm)
1.500–2.000 in (38.10–50.80 mm)	0.020 in (±0.508 mm)
2.000–2.500 in (50.80–63.50 mm)	0.030 in (±0.762 mm)

*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us. Customized Sizes and shapes are also available, please contact us.

Tantalum Bar & Tantalum Rod Material Grade

Material Grade	Tolerances
Min 99.9% Tantalum	Better than +/- 0.02 mm
ASTM F560 / RO5400 compliant	Better than +/- 0.001"

Tantalum Bar & Tantalum Rod Applications

1. Electronics industry: Due to its high melting point, low vapor pressure and good electrical properties, tantalum is widely used in the manufacture of electronic equipment such as vacuum tubes, transistors, integrated circuits and electronic connectors.

2. Aerospace industry: Due to its high strength, low density and good high-temperature performance, Tantalum is often used in the aerospace industry to manufacture structural components for aircraft and rockets as well as parts for high-temperature furnaces.

3. Medical field: Due to its biocompatibility and corrosion resistance, Tantalum is widely used in the medical field for the manufacture of medical implants, such as hip and knee implants, dental implants and cardiovascular devices.

4. Chemical and petroleum industry: Tantalum is resistant to corrosion by most acids and alkalis and is therefore used in the manufacture of chemical reaction vessels, pipes, valves and pumps. In the oil industry, Tantalum is also used to manufacture oil drilling equipment and pipework.

5. High-temperature industry: In addition to the above applications, Tantalum is also used in the manufacture of furnace tubes for high-temperature furnaces, crucibles, thermocouple protection tubes and metalworking tools.

Tantalum and Tantalum Alloy

R05200, unalloyed tantalum, electron-beam furnace or vacuum-arc melt, or both
R05400, unalloyed tantalum, powder-metallurgy consolidation.
R05255, tantalum alloy, 90 % tantalum, 10 % tungsten, electron-beam furnace of vacuum-arc melt, or both.
R05252, tantalum alloy, 97.5 % tantalum, 2.5 % tungsten, electron-beam furnace or vacuum-arc melt, or both.
R05240, tantalum alloy, 60 % tantalum, 40 % niobium, electron-beam furnace or vacuum-arc melt.

Tantalum Bar & Tantalum Rod Packaging

Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.

Packaging: Carton, Wooden Box, or Customized.

Tantalum Bar, Tantalum Rod FAQs

1 Can Tantalum Bars and Rods be easily machined or welded?
Yes, Tantalum Bars and Rods can be machined into various shapes and sizes, although specialized tools may be required due to their hardness. Tantalum also has excellent welding properties when appropriate techniques are used, particularly in vacuum or inert gas environments.

2 How is Tantalum Bar or Rod used in the electronics industry?
Tantalum Bars and Rods are often used in the manufacturing of capacitors, where the material’s high electrical conductivity and stable characteristics under extreme temperatures are critical for high-performance electronics.

3 Are TA0005 Tantalum Bars and Rods available in custom sizes?
Yes, TA0005 Tantalum Bars and Rods can be custom-manufactured to meet specific size, shape, and purity requirements for particular applications. Contact the supplier for custom orders.
