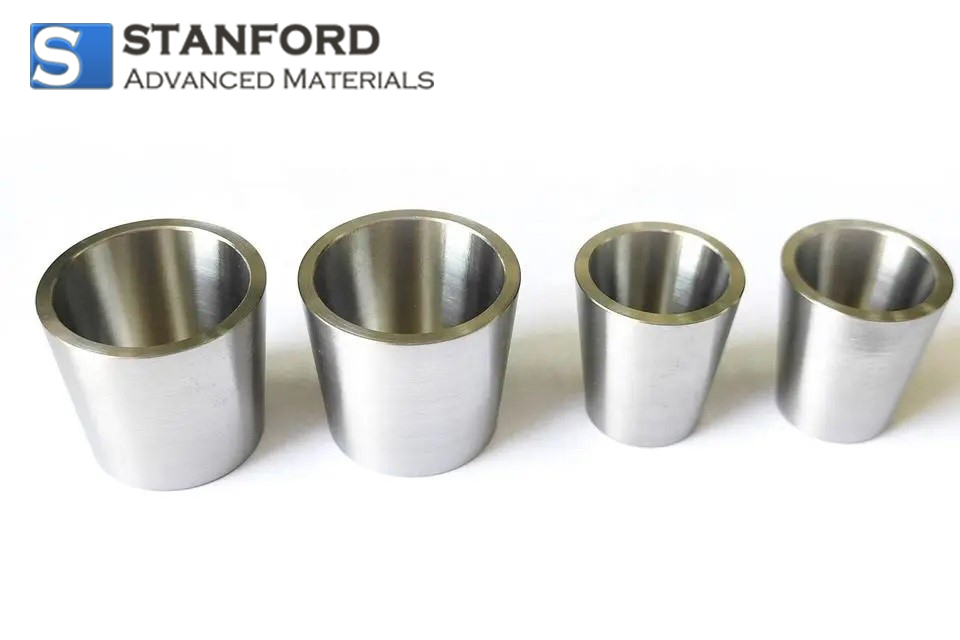

MU0085 Molybdenum Crucible (Mo Crucible)

Name: MU0085 Molybdenum Crucible (Mo Crucible)
SKU: MU0085
Availability: InStock
Rating: 4.9 (166 reviews)

Catalog No.	MU0085
Dimensions	10-500mm OD x 10-600mm L
Purity	Mo≥99.95%
Density	9.8 - 10.2 g/cc
Surface finish	Finish turning, Polishing
MSDS/SDS	Download MSDS/SDS

Backed by extensive knowledge, Stanford Advanced Materials (SAM) is your go-to source for high-purity Molybdenum Crucible (Mo Crucible) at prices that stand out for competitiveness.

INQUIRY

Description

Specification

SDS

Video

Reviews

Molybdenum Crucible Description

The molybdenum crucible is made of Mo-1 molybdenum powder, and its use temperature is 1100℃~1700℃. Molybdenum crucibles are mainly used in the metallurgical industry, rare earth industry, monocrystalline silicon, solar energy, artificial crystals, and mechanical processing industries.

Stanford Advanced Materials (SAM) can provide customized molybdenum crucibles according to customers' drawings and we can also provide solutions for your research.

We have a vertically integrated supply chain with the capability to refine molybdenum powder, press, and sinter ingots, and clean molybdenum and molybdenum alloy crucibles. In a word, SAM can manufacture a wide range of diameter, height, and thickness molybdenum crucibles to suit our customers' needs.

Molybdenum Crucible Specification

Condition	Size (mm)		Tolerance (mm)
Condition	Diameter (mm)	Height (mm)	Diameter (mm)	Height (mm)
Sintering	10-500	10-600	+/-5	+/-5
Forging	10-130	10-200	+/-1	+/-2

Customization available upon request.

*The above product information is based on theoretical data and is for reference only. Actual specifications may vary.

Molybdenum Straight Wall Crucibles

Item Code	Capacity	Outside Diameter	Depth
MO-C-1000	Cap (ml), 1000	Outside Dia (mm), 127	Depth (mm), 89
MO-C-100	Cap (ml), 100	Outside Dia (mm), 59	Depth (mm), 45
MO-C-10	Cap (ml), 10	Outside Dia (mm), 27	Depth (mm), 22
MO-C-15	Cap (ml), 15	Outside Dia (mm), 33	Depth (mm), 22
MO-C-20	Cap (ml), 20	Outside Dia (mm), 33	Depth (mm), 29
MO-C-25	Cap (ml), 25	Outside Dia (mm), 45	Depth (mm), 22
MO-C-35	Cap (ml), 35	Outside Dia (mm), 46	Depth (mm), 29
MO-C-45	Cap (ml), 45	Outside Dia (mm), 46	Depth (mm), 34
MO-C-55	Cap (ml), 55	Outside Dia (mm), 47	Depth (mm), 41
MO-C-5	Cap (ml), 5	Outside Dia (mm), 21	Depth (mm), 18
MO-C-75	Cap (ml), 75	Outside Dia (mm), 51	Depth (mm), 41

Molybdenum Crucible Type

* Pressed and Sintered Crucibles

The powder is pressed and sintered to the final shape. They are one of the types of the most popular crucibles.

* Spin-formed Crucibles

Large molybdenum plate blanks are hot spun-formed to the specified product geometry.

* Milled Crucibles

Material blanks are machined to the final product. This type of molybdenum crucible is also very popular.

* Welded Crucibles

Large crucibles with thinner wall thickness, and we recommend welded molybdenum crucibles.

Molybdenum Crucible Applications

1. High Temperature Melting: Due to the high melting point of molybdenum (approximately 2623 degrees Celsius or 4743 degrees Fahrenheit), Molybdenum Crucibles (Mo Crucibles) are commonly used in high-temperature melting processes such as the melting of metals, ceramics, or other high melting point materials.

2. Single Crystal Growth: Molybdenum Crucibles (Mo Crucibles) are used as sample-carrying vessels in single crystal growth processes. Its high-temperature resistance and chemical inertness make it an ideal vessel for growing high-temperature single crystals.

3. Vacuum heat treatment: Due to its stability at high temperatures and in vacuum environments, Molybdenum Crucibles (Mo Crucibles) is often used for vacuum heat treatment, such as high-temperature treatment of metals or heat treatment experiments.

4. Chemical analysis: Molybdenum Crucibles (Mo Crucibles) are used as sample containers in some chemical analysis experiments, especially when the experiments need to be carried out under high-temperature conditions.

5. Laboratory research: In a laboratory environment, Molybdenum Crucibles (Mo Crucibles) can be used for a variety of high-temperature experiments, including research on the nature of substances, synthetic reactions, and high-temperature reactions.

6. Metal smelting: Molybdenum Crucibles (Mo Crucibles) are used as containers for carrying and holding metal samples in metal smelting processes, especially at high temperatures.

Product Comparison

Crucible Material	Melting Point (°C)	Max. Service Temp. (°C)	Relative Cost	Key Characteristics & Typical Applications
Nickel (Ni)	1,455	≤ 700	Medium	Excellent alkali resistance. Suitable for fusing with sodium hydroxide, sodium peroxide, etc. Oxidizes easily in air; not for igniting and weighing precipitates.
Silver (Ag)	960	≤ 750	High	Low melting point. Resists potassium/sodium hydroxide attack. Avoid sulfur-containing substances and concentrated acids. Not suitable for weighing precipitates.
Gold (Au)	1,063	≤ 700	High	Excellent corrosion resistance. Can replace platinum for hydrofluoric acid or alkali hydroxide treatments. Low service temperature due to its low melting point.
Platinum (Pt)	1,774	Long-term: 1,200	Expensive	Extremely stable chemical properties. Resistant to hydrofluoric acid and molten carbonates. Ideal for precise ignition/weighing of precipitates and hydrofluoric acid digestions.
Molybdenum (Mo)	2,610	2,000 (Inert/Vacuum)	High	Superior high-temperature strength. Good oxidation resistance. Used for sapphire crystal growth, rare-earth metal smelting, and vacuum deposition.
Niobium (Nb)	2,468	1,200-1,800 (Est.)	High	High melting point and good corrosion resistance. Typically used in high-temperature vacuum or inert atmosphere environments.
Tungsten (W)	3,370	2,200-2,500 (Est.)	Very High	Highest melting point of all metals. Suitable for the most extreme temperatures. Brittle, difficult to machine, and generally more expensive than molybdenum.
Rhenium (Re)	3,180	2,300-2,800 (Est.)	Extremely Expensive	Very high melting point and good strength. Its extreme cost limits use to highly specialized research or applications where its unique properties are critical.
Iridium (Ir)	2,446	2,000-2,300 (Est.)	Extremely Expensive	One of the few metals that remains stable in air at very high temperatures. Used for ultra-high temperature experiments under oxidizing conditions.

Molybdenum Crucible Packaging

Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.

Packaging: Carton, Wooden Box, or Customized.

Molybdenum Crucible FAQs

Q1: Can I order custom molybdenum crucibles?

A1: Yes, we offer custom molybdenum crucibles in various sizes, shapes, and configurations. Whether you need a crucible with specific dimensions, wall thickness, or capacity, we can provide a solution tailored to your needs. Please contact us to discuss your requirements.

Q2: Do you provide Material Safety Data Sheets (MSDS) or technical support?

A2: Yes, we provide Material Safety Data Sheets (MSDS) and offer full technical support for all our molybdenum products, including crucibles. Our team can assist you with handling, safety, and technical specifications. Feel free to contact us for more information.

Q3: Are molybdenum crucibles compatible with all chemicals?

A3: Molybdenum crucibles are highly resistant to many chemical reactions, particularly in high-temperature environments. However, they may not be compatible with certain aggressive chemicals, such as concentrated acids or alkaline solutions. We recommend verifying compatibility with specific chemicals based on your application. Please contact us for more details if needed.
