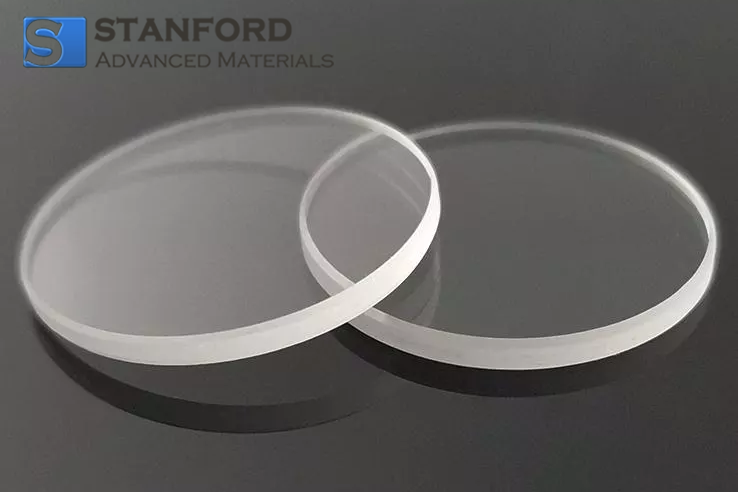

OP8309 Potassium Bromide Window (KBr) Dia. 25.4 mm x Thk. 5.0 mm, Uncoated

Potassium Bromide Window (KBr) Dia. 25.4 mm x Thk. 5.0 mm, Uncoated Description

Our Potassium Bromide (KBr) Window offers exceptional infrared transmission and is well-suited for a variety of IR spectroscopy and analytical applications. Measuring 25.4 mm in diameter and 5.0 mm in thickness, this uncoated window provides a broad spectral range and minimal scatter, ensuring accurate data collection. Thanks to KBr’s high optical purity and low absorption in the mid-IR region, researchers can rely on consistent, high-resolution results.

Each window is manufactured with strict quality controls to minimize surface imperfections and maintain dimensional accuracy. The material’s moisture sensitivity is carefully addressed during production and packaging, preserving its integrity until final use. Choose this KBr Window for performance-critical systems in pharmaceuticals, environmental testing, and other precision-driven sectors where dependable infrared transmission is paramount.

Potassium Bromide Window (KBr) Dia. 25.4 mm x Thk. 5.0 mm, Uncoated Applications

Potassium Bromide Windows (KBr) with a diameter of 25.4 mm and thickness of 5.0 mm are known for their high transparency in the infrared region, making them indispensable in a variety of optical setups. Their low refractive index and minimal scattering properties ensure accurate measurements in spectroscopy, industrial processes, and commercial applications, highlighting their adaptability across diverse environments.

1. Industrial Applications

·         Application 1: Used as precision IR sensor windows in high-temperature process monitoring due to their excellent thermal stability

·         Application 2: Integrated into laser-based production lines for real-time quality control, leveraging their low absorption characteristics

2. Research Applications

·         Application 1: Incorporated into FTIR spectrometers for accurate and reliable IR spectral acquisition

·         Application 2: Employed in advanced optical bench setups requiring minimal interference to explore novel materials and reactions

3. Commercial Applications

·         Application 1: Utilized in consumer electronics for environmental sensing where clear IR transmission is critical

·         Application 2: Deployed as protective windows in thermal imaging devices, balancing durability with optimal infrared throughput

Potassium Bromide Window (KBr) Dia. 25.4 mm x Thk. 5.0 mm, Uncoated Packaging

Each uncoated KBr window (25.4 mm in diameter, 5.0 mm in thickness) is packaged in a sealed moisture barrier pouch, placed within a foam-padded container to prevent mechanical damage. Store in a dry, dust-free environment and handle with gloves to avoid contamination. Low-humidity conditions are recommended. Custom packaging solutions and labeling options are available to meet specific requirements.

Packaging: Vacuum sealed, Wooden Box, or Customized.

Potassium Bromide Window (KBr) Dia. 25.4 mm x Thk. 5.0 mm, Uncoated FAQs

Q1: What are the key material properties of Potassium Bromide Window (KBr) Dia. 25.4 mm x Thk. 5.0 mm, Uncoated ?

A1: Potassium Bromide (KBr) is a highly transparent crystalline material that offers wide spectral transmittance from about 0.2 µm to 25 µm. With a relatively low hardness, KBr is susceptible to scratches and is notably hygroscopic, requiring moisture protection. Its refractive index is approximately 1.53 at 10 µm. KBr windows also exhibit good internal homogeneity and low inclusions, making them suitable for infrared spectroscopy applications.

Q2: How should this product be handled and stored?

A2: Given the hygroscopic nature of KBr, the windows should be handled with clean gloves and minimal direct contact. They must be stored in a low-humidity environment, ideally in a desiccator or sealed container with desiccant packs. Avoid exposure to moisture, as it can degrade surface quality. Additionally, prevent mechanical stress, as KBr is brittle and easily chipped during improper handling or mounting.

Q3: Which quality standards and certifications apply to Potassium Bromide Window (KBr) Dia. 25.4 mm x Thk. 5.0 mm, Uncoated ?

A3: These KBr windows are typically manufactured under rigorous ISO 9001 quality management systems to ensure consistent optical performance and dimensional accuracy. They may also meet compliance criteria such as RoHS or REACH, depending on the supplier’s specifications. In-house or third-party interferometric testing is often conducted to verify surface quality, wavefront distortion, and parallelism. Additional certifications, like a certificate of compliance, are provided to confirm meeting customer requirements.

Related Information

1. Material Properties and Advantages

Possessing a broad optical transparency range, the Potassium Bromide Window (KBr) Dia. 25.4 mm x Thk. 5.0 mm, Uncoated is specially suited for infrared spectroscopy and related analytical applications. Its crystalline structure enables excellent transmission in the mid-IR and far-IR wavelengths, reducing signal loss and ensuring accurate measurements. This specific size and thickness combination provides durability and stability, allowing it to withstand common lab handling procedures without undue risk of fracture.

Exhibiting low refractive index and minimal stray reflections, this KBr window ensures a high level of clarity for precise optical analysis. Due to its inherent chemical composition, potassium bromide remains remarkably consistent when exposed to a wide range of laboratory conditions. As a result, it offers reliable performance for both routine and specialized spectroscopy tasks, making it an attractive choice for researchers seeking repeatable and accurate data.

2. Applications in Advanced Industries

Metallurgical research facilities frequently rely on this Potassium Bromide Window (KBr) to examine samples under varying heat and pressure conditions. Given its broad transparency in the infrared spectrum, it helps engineers investigate subtle material transitions, detect impurities, and refine metallurgical processes. The 25.4 mm diameter offers a substantial surface area for effective data capture, while the 5.0 mm thickness supplies added mechanical stability.

Further deployment of this uncoated KBr window occurs in semiconductor manufacturing, where precise optical measurements are indispensable for wafer inspection and process control. It is commonly integrated into analytical equipment such as Fourier Transform Infrared (FTIR) spectrometers, where its superior clarity and resistance to common lab contaminants facilitate heightened accuracy in detecting trace elements or defects within semiconductor layers.
