PBN0922 Pyrolytic Boron Nitride Crucible, PBN Crucibles

Name: PBN0922 Pyrolytic Boron Nitride Crucible, PBN Crucibles
SKU: PBN0922
Availability: InStock
Rating: 4.9 (166 reviews)

Catalog No.	PBN0922
Dimensions	5ml~5L
Material	PBN, Pyrolytic Boron Nitride
Standard	LEC, MBE, VGF
Purity	99.99%
Form	Crucible
Melting Point	220-230℃

Pyrolytic Boron Nitride Crucibles (PBN Crucibles) are extremely pure and can work under high vacuum circumstances. Stanford Advanced Materials (SAM) has rich experience in manufacturing and supplying high-quality PBN Crucibles.

INQUIRY

Pyrolytic Boron Nitride Crucible, PBN Crucibles

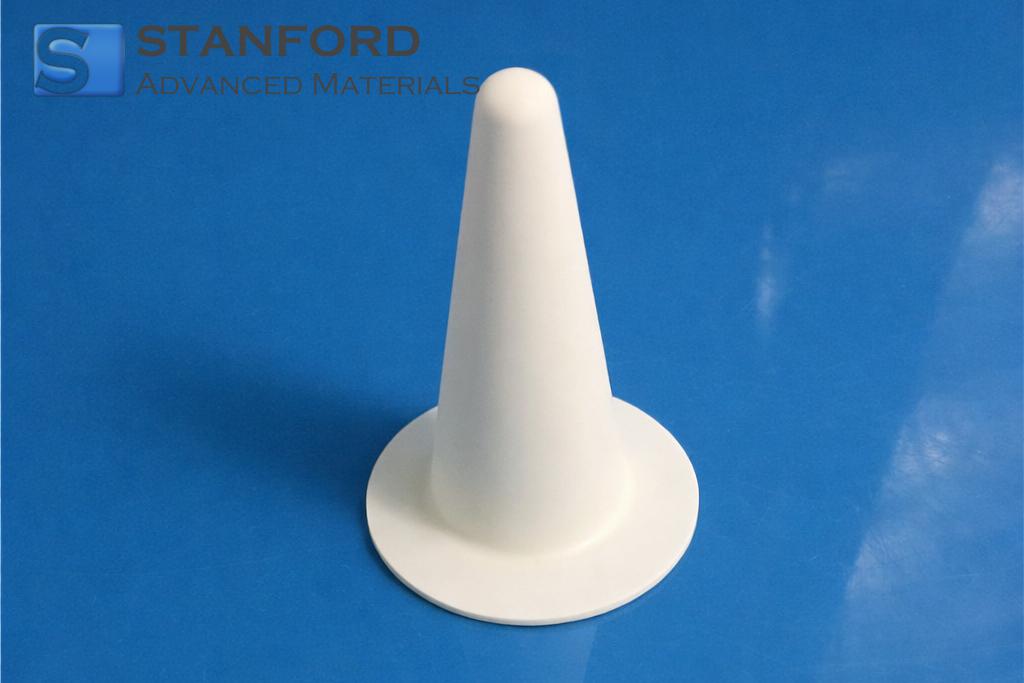

/images/sc/1765961849-normal-PBN0922-1.jpg

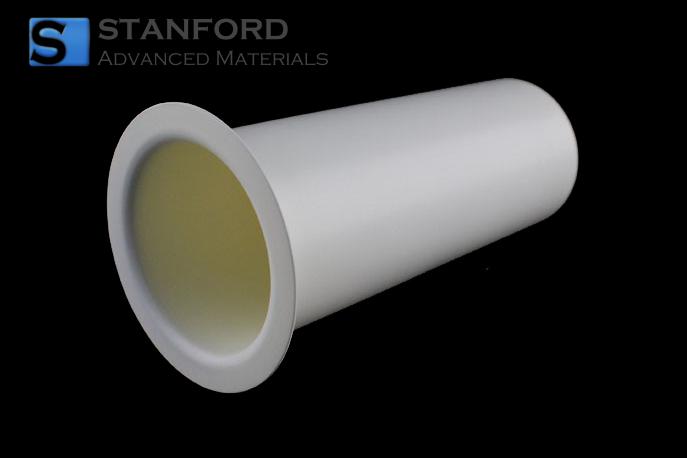

/images/sc/1765961869-normal-PBN0922-2.jpg

Description

Specification

SDS

Video

Reviews

PBN Crucibles, Pyrolytic Boron Nitride Description

Pyrolytic Boron Nitride Crucibles (PBN Crucibles) from SAM have a much better purity level compared with normal boron nitride ceramic materials. Using BCl3 and NH3 as raw materials, pure pyrolytic boron nitride crucibles can be prepared by chemical vapor deposition (CVD) process at high temperature and low pressure, because the purity of steam is easier to control. Most PBN products made by the CVD process have less than 100 ppm of total impurities, which means purity is better than 99.99%. High-purity PBN products have excellent mechanical properties such as high electrical resistance and good thermal conductivity.

PBN Crucibles, Pyrolytic Boron Nitride Specifications

Material	PBN
Purity	≥99.99%
Density	1.95-2.22 g/cm3
Tensile Strength	153.86 N/mm², 112 MPa
Bending Strength	243.63 N/mm², 173 MPa
Compression Strength	154 MPa
Max. Working Temperature	2400℃
Specific Heat Capacity	0.89 J/g·℃
Electrical Resistivity	2*10¹⁵ Ω·cm
Dielectric Strength (RT)	>2*10⁵ D.C. Volts/mm
Thermal Conductivity (W/M·K)	43-60

*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.

Available Pyrolytic Boron Nitride Crucible Products

Crucible Types

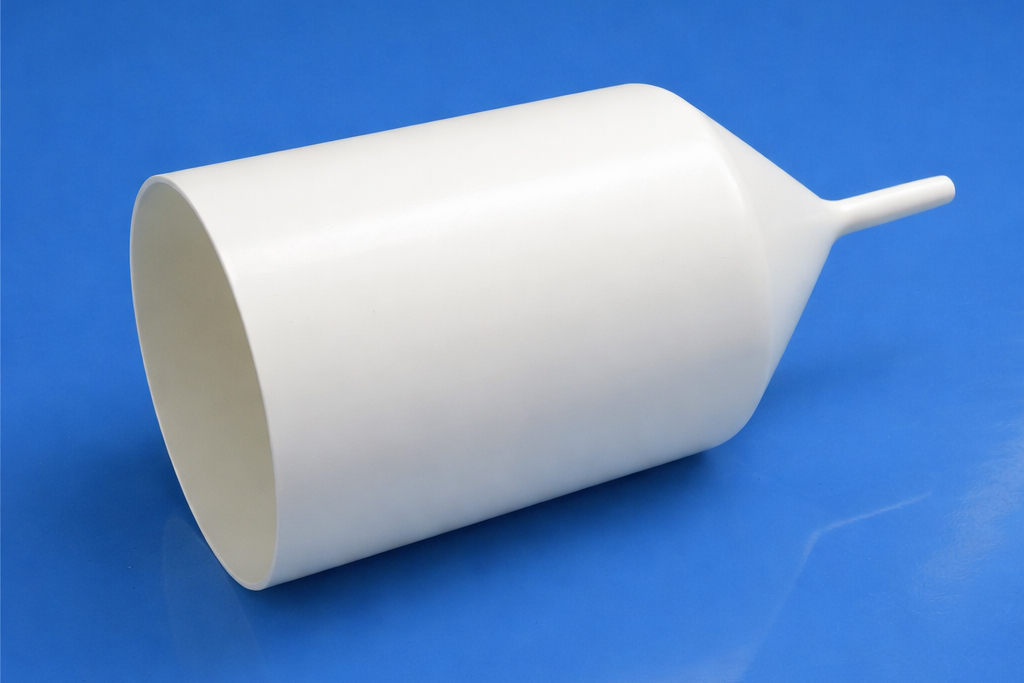

Type	LEC	MBE	VGF
Applications	Czochralski Method	Molecular Beam Epitaxy	Vertical Gradient Freeze

*Customization is available based on drawings.

The PBN crucible product code is composed as follows:

Abbreviations and code:

C conical-shaped crucibles
D double-wall crucibles
Ø lip

Capacity 1cm³ ~ 10 cm³

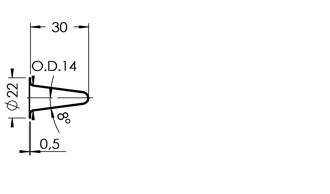

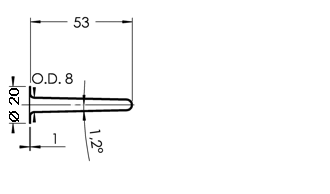

Code: PBN 1-12	Code: PBN 1-14	Code: PBN 1-20	Code: PBN 2-16	Code: PBN C2-22
Capacity:1 cm³	Capacity:1 cm³	Capacity: 1.5 cm³	Capacity: 2 cm³	Capacity: 2 cm³

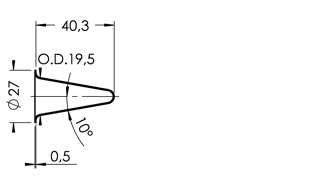

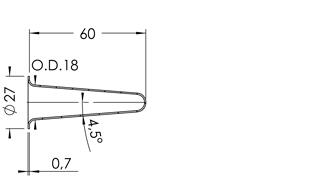

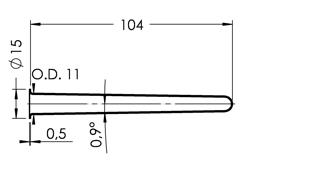

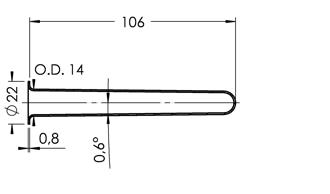

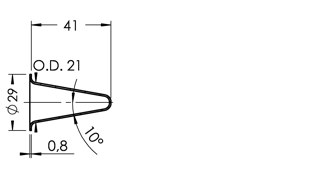

Code: PBN 5-16	Code: PBN C5-27	Code: PBN C5-29	Code: PBN C8-27	Code: PBN 10-22
Capacity: 5 cm³	Capacity: 5 cm³	Capacity:5 cm³	Capacity: 8 cm³	Capacity: 10 cm³
Capacity 10cm³ ~ 100 cm³

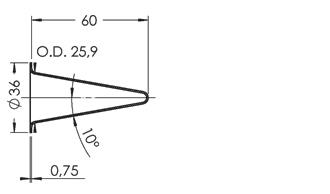

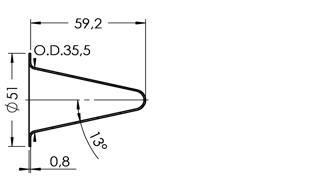

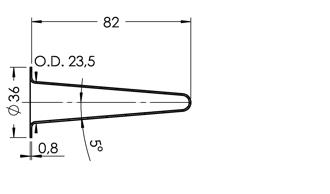

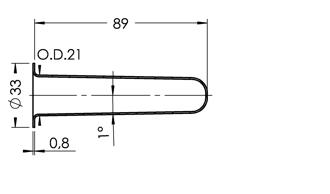

Code: PBN C12-36	Code: PBN C12-37	Code: PBN C16-36	Code: PBN C25-33	Code: PBN C25-51
Capacity: 12 cm³	Capacity: 12 cm³	Capacity: 16 cm³	Capacity: 25 cm³	Capacity: 25 cm³

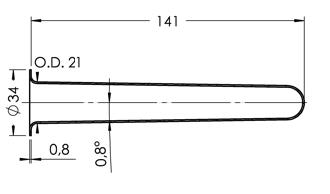

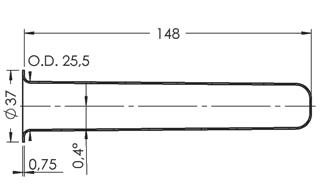

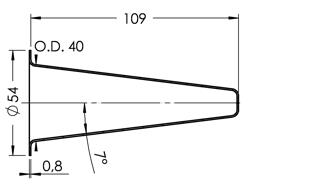

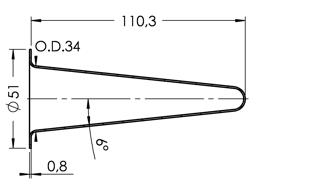

Code: PBN 35-34	Code: PBN C40-51	Code: PBN C60-54	Code: PBN60-37	Code: PBN C70-60
Capacity: 35 cm³	Capacity: 40 cm³	Capacity: 60 cm³	Capacity: 60 cm³	Capacity: 70 cm³

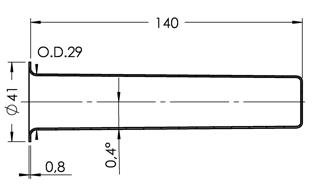

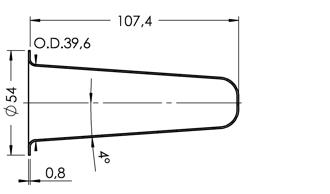

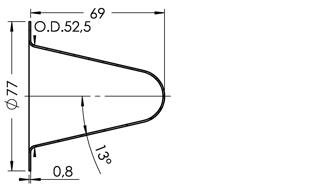

Code: PBN C75-77	Code: PBN C80-54	Code: PBN C82-71	Code: PBN 85-41
Capacity: 75 cm³	Capacity: 80 cm³	Capacity: 82 cm³	Capacity: 85 cm³
Capacity 100 cm³ ~ 500 cm³

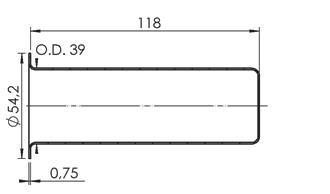

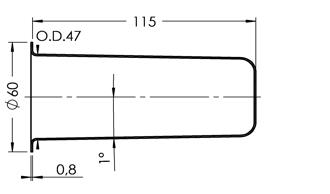

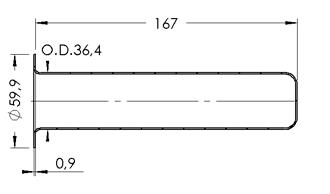

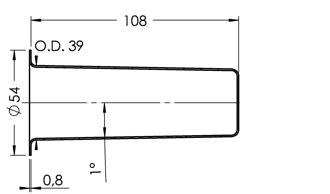

Code: PBN 125-54	Code: PBN 130-54	Code: PBN 150-60	Code: PBN 155-60	Code: PBN 160-60
Capacity: 125 cm³	Capacity: 130 cm³	Capacity: 150 cm³	Capacity: 155 cm³	Capacity: 160 cm³

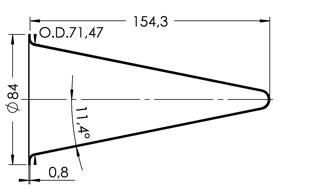

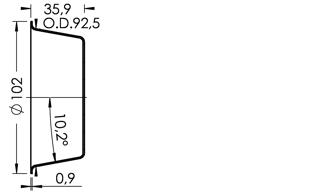

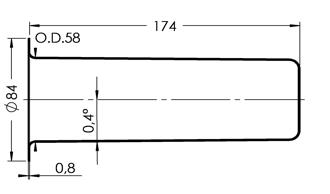

Code: PBN C200-84	Code: PBN 200-58	Code: PBN 200-102	Code: PBN 420-84
Capacity: 200 cm³	Capacity: 200 cm³	Capacity: 200 cm³	Capacity: 420 cm³

PBN Crucibles, Pyrolytic Boron Nitride Applications

Crucibles for GaAs, InP, CdTe, and other III-V compound crystal growth

MOCVD and CVD systems for semiconductor and optoelectronic production

Evaporation sources for thin film deposition in vacuum coating systems

High-purity chemical or metal melting and containment

Laboratory containers for high-temperature material testing

PBN Crucibles, Pyrolytic Boron Nitride Packaging

Our PBN Crucibles are carefully handled during storage and transportation to preserve the quality of our product in its original condition.

Comparison Table

PBN (Pyrolytic Boron Nitride) Crucible vs Hot Pressed BN (HPBN) Crucible

Feature	PBN Crucible	Hot Pressed BN Crucible
Manufacturing Method	Chemical Vapor Deposition (CVD)	High-temperature vacuum hot pressing
Purity	Ultra-high (≥99.99%)	High (typically ≥98%)
Density	High and uniform	Moderate to high, depending on grade
Mechanical Strength	Lower, fragile in large sizes	Higher, suitable for machining and larger sizes
Surface Finish	Smooth, non-porous	Slightly rougher, may have open porosity
Thermal Shock Resistance	Excellent	Very good
Temperature Resistance	Up to ~1800°C in vacuum/inert	Up to ~2100°C in vacuum/inert
Electrical Insulation	Excellent	Excellent
Machinability	Difficult (as-deposited shape only)	Excellent (can be machined into complex shapes)
Typical Applications	Semiconductor crucibles, MBE, evaporation	Metallurgy, crystal growth, laboratory crucibles
Cost	Higher (due to complex CVD process)	Lower to moderate

Product Comparison

Crucible Type	Material	Max Temp (°C)	Thermal Conductivity	Thermal Shock Resistance	Chemical Resistance	Applications
Quartz Ceramic	Quartz Ceramic	1100	Low	High	High	General laboratory
BeO Ceramic	Beryllium Oxide	1800	Very High	High	High	High-temperature, electronics
PG Coated C	PG coated Graphite	2000	High (anisotropic)	Very High	High	Crystal growth, evaporation
PG Coated PBN	PG coated PBN	1800	High	Very High	Very High	High-purity crystal growth
PBN Crucible	Pyrolytic BN	1800	High	Very High	Very High	MBE, OLED, VGF, LEC processes
AlN Crucible	Aluminum Nitride	1800	High	High	High	Semiconductor, packaging
SiC Crucible	Silicon Carbide	1600	High	Very High	High	Metal melting, foundry
H-BN Crucible	Hot Pressed BN	1800	Moderate	Very High	High	Metal processing, soldering
Al Titanate	Aluminum Titanate	1400	Low	Excellent	Moderate	Thermal cycling, glass industry
Alumina Crucible	Aluminum Oxide	1700	Moderate	Moderate	High	General high-temperature
Quartz for Si	Fused Quartz	1200	Low	High	High	Silicon single crystal growth (Czochralski)

FAQs

Q1: What is Pyrolytic Boron Nitride (PBN)?

Pyrolytic Boron Nitride (PBN) is a high-performance, high-purity form of boron nitride that is produced through a chemical vapor deposition (CVD) process. It is known for its excellent thermal conductivity, electrical insulation properties, and resistance to high temperatures.

Q2: What are the key properties of Pyrolytic Boron Nitride?

High Thermal Conductivity: Provides excellent heat dissipation, making it suitable for high-temperature applications.

Electrical Insulation: It is an excellent electrical insulator, making it ideal for electronic and semiconductor applications.

High-Temperature Resistance: Can withstand temperatures of up to 2000°C in inert atmospheres.

Chemical Stability: Resistant to most chemicals, including acidic and alkaline environments.

Low Coefficient of Thermal Expansion (CTE): Offers low expansion, ensuring stability under varying temperatures.

Q3: What are the main applications of Pyrolytic Boron Nitride?

Semiconductor Industry: Used as a material for substrates, insulators, and high-performance components in semiconductor manufacturing.

Aerospace and Defense: Used for thermal management, high-temperature insulation, and radiation shielding.

Electronics and Electrical Engineering: Ideal for components that require electrical insulation and high heat resistance.

Molds and Dies: Used in the production of molds for high-precision manufacturing and in applications requiring heat resistance.
